Signamax 2-port Wall Plate
With Coaxial Keystone Couplers – Lot Of 3 ( 1 Set )
USD $11.98
Condition : New
Free Shipping
Notify me when the price drops
We will email you if we find a lower price on this product!

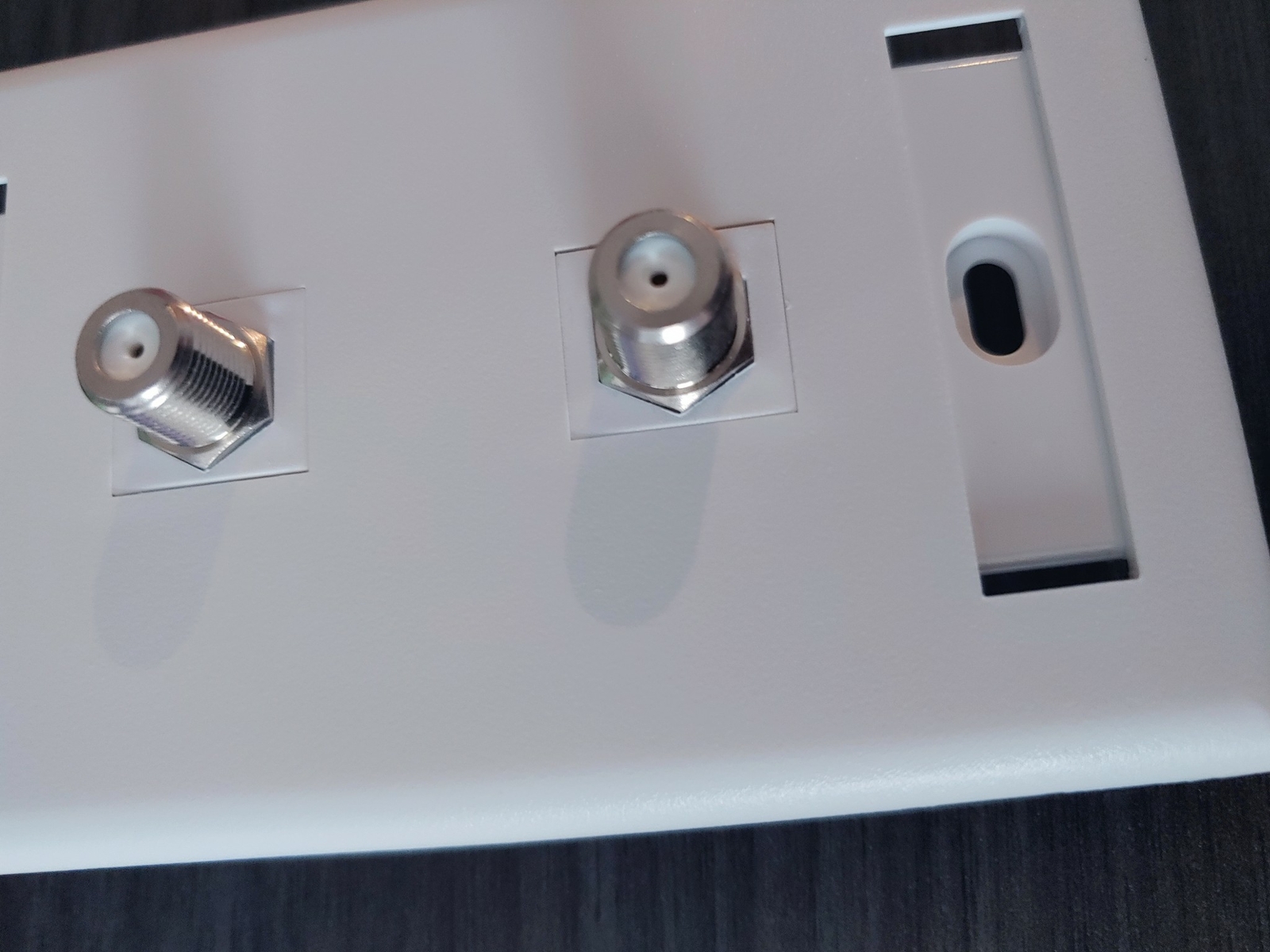

Signamax 2-Port Wall Plate with Coaxial Keystone Couplers – LOT of 3 (1 Set)
Product Description:
This listing is for 1 set (LOT of 3). Each set includes:
1x Signamax SKFL-2-WH – 2-Port Single Gang Faceplate with top and bottom labeling windows for convenient identification
2x Signamax CMK-F3-WH – 75 Ohm F-type coaxial feed-thru keystone couplers
These professional-grade wall plates and keystone couplers are used by installers for residential and commercial applications, providing a clean, organized, and high-quality connection solution.
Faceplate Details:
High impact thermoplastic, UL94V-0 fire retardant
Dimensions: W 69.9 mm x H 114.3 mm (2.75" x 4.50")
Mounting screw distance: 83.3 mm (3.28")
Keystone panel opening: 14.7 mm x 19.3 mm
Operating Temperature: -10°C to +60°C (14°F to 140°F)
Keystone Coupler Details (CMK-F3-WH):
75 Ohm, bronze shell and terminals
3/8-32 thread
Compatible with all Signamax keystone panels, faceplates, and surface-mount boxes
Used for Series 59, Series 6, and Series 11 coaxial cable
F-type feed-thru, center conductor used instead of pin
Rated for 1- or 3-GHz performance
Easy field connection
Pricing & Shipping:
Price: $11.98 per set (1 wallplate + 2 keystone couplers)
Shipping: Free via USPS Ground Advantage
Handling Time: Ships same day or next business day
